GSE

GSE Integration is an in-roof mounting system, allowing the building integrated installation of standard solar panels on new builds or roof-renewal properties. It’s compatible with most panels on the market, so it makes it a great all-round choice.

KEY BENEFITS

    • Modules can be installed on 12° to 50° pitch.
    • Compatible with virtually all photovoltaic panels on the market.
    • Portrait or landscape format installation.
    • Heavily tested, secure in all weather

The GSE solution is a highly compatible solution that has been tested for all sorts of environments. The result is a fantastic solution that you can rely on.

Not only that, but installers love the GSE system for its installation process, which is easy and effective, a winning combo. You can design your own custom PV system using GSE on our Design Tool.



CONTACT US

Buy GSE on our Portal here. We’re proud to be a leading distributor, so why not explore which products are right for your next install?

Or view our other solar products. We’ve got plenty of options including Solar PVEV Charging & Battery Storage solutions.

We stock the largest amount of these products of any UK company, meaning we’re always ready with the products you need.



Product codeCategoriesName
GSE-GM-NUT-RND-HEADED-T Nuts & Bolts, PV Mounting6 pans nut with autoblocking binding washer (coupled with screw “14”)
GSE-GM-S-CLAMP-B-35Ground Mount, PV MountingSingle clamp black 35mm -Ground Mount.
GSE-GM-RAIL-2.4 Mounting Rail, PV MountingGround Mounting Z-Rail 40×60 – 2.40m
GSE-GM-RAIL-CONN PV Mounting, Rail ConnectorZ-Rail Connector, plus (4xscrew)
GSE-GM-REAR-BRCKTGround Mount, PV MountingBack of Square – Z profile top part (thickness 3mm)
GSE-GM-S-CLAMP-B-30Ground Mount, PV MountingSingle clamp black 30mm -Ground Mount
GSE-GM-S-CLAMP-B-32Ground Mount, PV MountingSingle clamp black 32mm -Ground Mount
GSE-GM-S-CLAMP-B-40Ground Mount, PV MountingSingle clamp black 40mm -Ground Mount.
GSE-GM-FRONTAL-BRCKTGround Mount, PV MountingFront of Square – Z profile bottom part (thickness 3mm)
GSE-GM-LATERAL-LF-RTGround Mount, PV MountingRight and left side of the box base (thickness1mm)
GSE-GM-NUT-2PER-SQR-T Nuts & Bolts, PV MountingM10 Nut for M10 Screw (pack of 20)
GSE-GM-NUT-CORNER-PIECE-T Nuts & Bolts, PV MountingM6 Nut for M6 Screw (pack of 100)
GSE-GM-RAIL-3.15 Mounting Rail, PV MountingGround Mounting Z-Rail 40×60 – 3.15m
GSE-GM-RAIL-3.58 Mounting Rail, PV MountingGround Mounting Z-Rail 40×60 – 3.58m
GSE-GM-CORNER-PIECE-FIX Mounting Rail, PV MountingCorner Piece L (thickness 2mm) fixed length 550mm
GSE-GM-D-CLAMP-BGround Mount, PV MountingDouble clamp black 30-40mmm Single
GSE-GM-FRNT-BCK-BASEGround Mount, PV MountingFront and back of the box base (thickness1mm)
GSE-GM-BCK-FIX-SUP-KIT-GRNDGround Mount, PV MountingBack Fixing Support Kit
GSE-GM-BOLT-2PER-SQR Nuts & Bolts, PV MountingM10 Screw & Washer – square fix (pack of 20)
GSE-GM-BOLT-CORNER-PIECE-FIX Nuts & Bolts, PV MountingM6 Screw and washer – corner fix (pack of 100)
GSE-GM-BOLT-Z-BAR-JUNCTION Nuts & Bolts, PV Mounting6 pans bolt with autoblocking binding washer – For Z bar junction fixation (4 per Junction)
GSE-GM-BOX-BASEGround Mount, PV MountingBottom wall of Ballasting Box (1mm thickness) V2
GSE-GM-CORNER-PIECE-ADJUST Mounting Rail, PV MountingCorner Piece L (thickness 2mm) adjustable length: delivered 1233mm
GSE-FRAMEHC-LAN-1690-1020 PV MountingFrame Half Cell Landscape 1690 / 1020
GSE-FRAME-DPO-1650-1140 PV MountingFrame DPO 1650/1140
GSE-FRAME-DPO-1650-1160 PV MountingFrame DPO 1650/1160
GSE-FRAME-DPO-1840-1045 PV MountingFrame DPO 1840/1045
GSE-FRAME-DPO-1650-1135 PV MountingFrame DPO 1650/1135
GSE-FRAME-DPO-1840-1020 PV MountingFrame DPO 1840/1020
GSE-FRAME-DPO-1840-1030 PV MountingFrame DPO 1840/1030
GSE-ROOFLEX-5M-0.5M PV MountingRooflex Flexible Sealing Strip 500mm x 5m

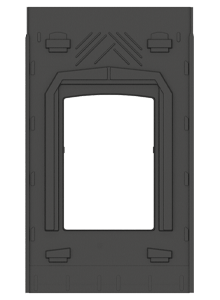

GSE-FRAMEHC-POR-1710-1055 PV MountingFrame Half Cell Portrait 1710 / 1055
GSE-GM-TOUCH-UP-SPRAY Other, PV MountingTouch up Spray 400mL
GSE-FRAME-DPO-1840-1050 PV MountingHALF PORTRAIT FRAME 1840/1050
GSE-FRAMEHC-POR-1710-1000 PV MountingFrame Half Cell Portrait 1710 / 1000
GSE-SCREW-40MM-BLK PV Mounting, Wood ScrewsStainless steel A2 screw 6.5MMx40MM + EPDM washer (BLK/SIL)
GSE-FLASH-LAT-BLA PV MountingLateral Flashing BLACK
GSE-FLASH-LAT-DPO-BLA PV MountingLateral Flashing – UNIVERSAL – 1290MM – BLACK NEW DPO
GSE-VELUX-ODL-KIT PV Mounting, Roof FlashingODL Flash kit for Velux
GSE-WEDGES-TWINPACK PV MountingClamp Wedges Twin Pack ( 2x Left / 2x Right )
GSE-FRAME-POR-1700-1016 PV MountingFrame Portrait 1700 / 1016 for LG NEON 2 Panels
GSE-JUNCTION-BLA PV MountingJunction for Top Flashing BLACK
GSE-JUNCTION-SIL PV MountingJunction for Top Flashing SILVER
GSE-RIVET PV MountingPop Rivet (Fixation for Top Centre Flashings)
GSE-ROOFLEX-5M PV MountingRooflex Flexible Sealing Strip 330mm x 5m

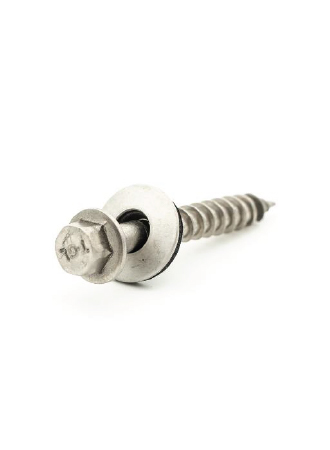

GSE-SCREW-BLA PV Mounting, Wood ScrewsSelf-Tapping Screw + Washer BLACK – singles
GSE-SEAL PV MountingPre-compressed seal roll (5.5m)
GSE-VELUX-MK08-LEFT PV Mounting, Roof FlashingGSE/VELUX lateral Flashing for MK08 (Left)
GSE-VELUX-MK08-RIGHT PV Mounting, Roof FlashingGSE/VELUX lateral Flashing for MK08 (Right)
GSE-SCREW-SIL PV Mounting, Wood ScrewsSelf-Tapping Screw + Washer SILVER
