Multipole Surge Arrester – Type 2 1000V DC (950530)

SKU: DG-YPV-SCI-1000 Categories: , ,

Description

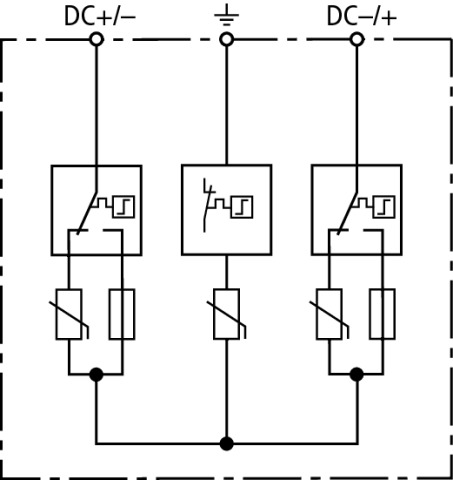

This device is a multipole surge arrester and comes with an integrated three-step DC switching device.

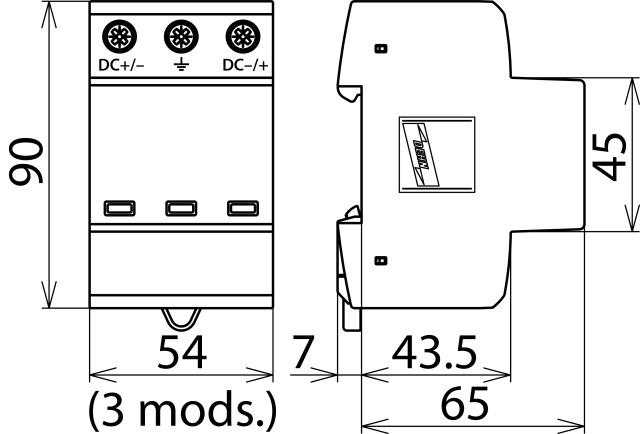

The 3 DIN module rail mounted type 2 surge device is for the protection of 1000V DC inputs of invertors.

The product has the patented SCI function necessary for safe electrical isolation and preventing fire due to DC arcs.

It should be used near to the invertor inputs or in combiner boxes and can be used when the separation distance from a fitted LPS is met or most domestic and commercial installations(apart from metal roofs).

Keywords: DGYPVSCI1000, DEHN, DC Surge Protection

Supplier part Number: DG-YPV-SCI-1000
